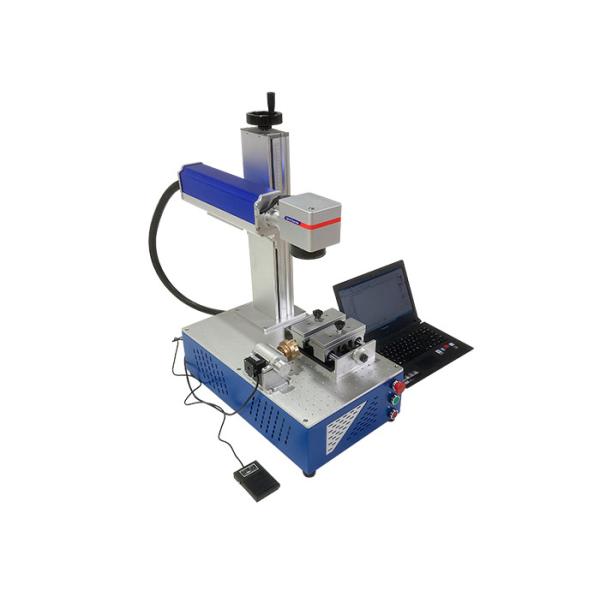

SGS 200x200MM Portable Laser Marking Machine 1064nm Wavelength

  • 1
  • 2
  • 3

Brand Name : Maxwave

Model Number : MW-JPT50W

Certification : CE FCC SGS

Place of Origin : Hebei, China

MOQ : 1

Payment Terms : T/T, Western Union

Supply Ability : 22000/Per Year

Delivery Time : 5-8 working days

Packaging Details : Wooden Case

After Warranty Service : Online support, Spare parts

Laser source : Raycus Laser Source

Marking Speed : 0-7000mm/s

Marketing Type : New Product 2021

Marking Area : 300mm*300mm,200x200mm

Control Software : EZcad

Marking Depth : 0 ~0.5mm

Marking Hea : SINO

Contact Now

SGS 200x200MM Portable Laser Marking Machine 1064nm Wavelength

Portable Type Fiber Laser Marking Machine with JPT/MAX/RAYCUS Source

Product Descriptions:
1. Model: Fiber Laser Marking Machine
2. Applicable materials:
Applicable various metal, such as silver, alloy, aluminum, stainless steel, copper etc, and some non-metal materials, such as
PVC,PC, black acrylic.
3. Applicable industry:
They are widely applying for electronic, jewelry, automobiles, communication products, plastic buttons, IC etc.

Parameter Data:

Laser power 20W 30W 50W 100W
Laser wavelength 1064nm
Beam quality M2<2
Control software Ezcad (provided)
Marking depth ≤0.3mm
Cutting depth ≤1mm(30W 50W 100W mark 1-3mins repeatedly then can cut)
Marking speed ≤7000mm/s
Minimum line width 0.01mm
Minimum character 0.5mm
Marking Size 110 * 110mm ( 75mm 200mm 300mm optional )
Electric power <500W
Working voltage 110/220V ± 10%, 50/60HZ
Cooling way Air cooling
Ambient operating temperature 15 ° C - 35 ° C
Graphic file format PLT, DXF, AI, BMP, JPG
Machine weight 39
Machine size 56L * 55W * 72H (cm)
Packing Plywood box

System features and advantages:
It can import vector graphics such as PLT, DXF and bitmap such as BMP, and use powerful graphics generation and processing functions such as AutoCAD and CorelDRAW.
Can Symbol bar code, all kinds of text (including date and time, disordered text skip number, number skip number, etc.), graphics, images, etc.
Support multi document marking, rotary marking, vernier caliper marking, cutting marking (large graphics marking) and flight marking
